Switches with dry contacts are used when the Livolo switch should not directly control the light source, but instead send a signal to a module that controls the light source (e.g. Fibaro modules, LOXONE, other Z-Wave devices, etc.).
This type of switch is primarily intended for use with intelligent Smart Home systems that require a so-called "dry contact relay". A dry contact is a contact that does not have a direct connection to the power source and ground. This means that there is no voltage on the dry contact terminals if the terminals are not connected to other equipment.
A touch switch without fixation with a dry contact requires a 220 volt AC power supply. The switch operates in mode #2, where the contact is closed only when touched to the sensor. This type of switch can be used to switch 12V, 24V, or 115V, 230V.
The switch dimensions allow it to be installed in mounting boxes of any construction standards accepted in our country. All of this significantly simplifies the installation of switches.

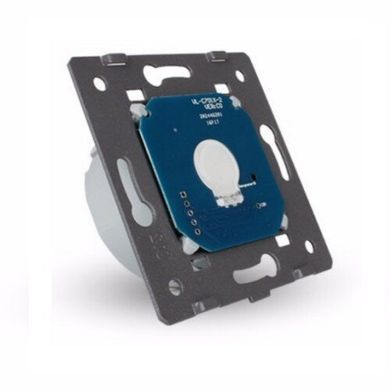

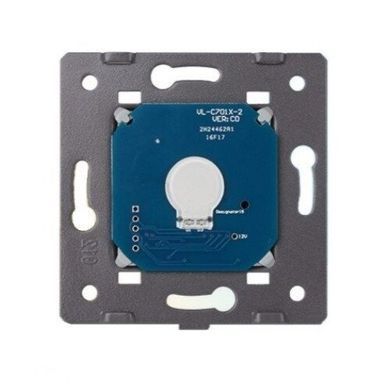

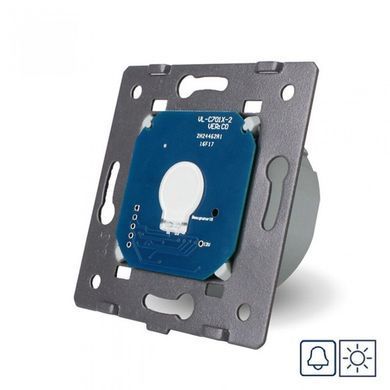

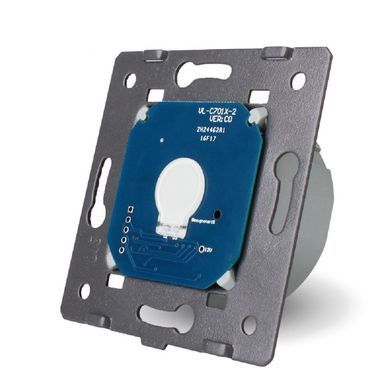

Touch switch with reset function and dry contact requires a 220 volt AC power supply. The switch closes the contact only when touched to the sensor.

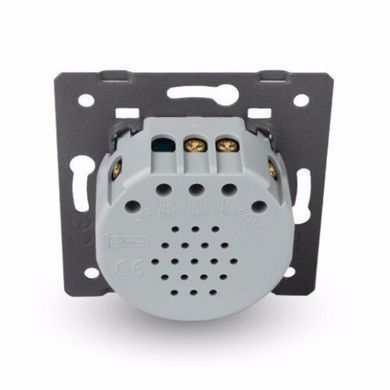

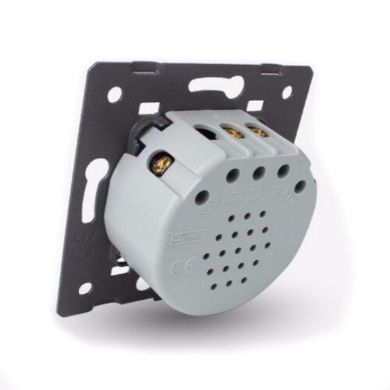

Independent relays of the switch provide a non-potential "dry contact".
Wiring diagram that works from 220 volts

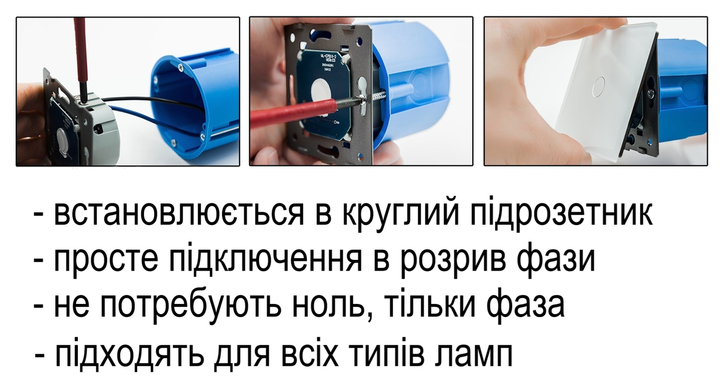

The switch is installed in a round mounting box
Touch panel is supplied separately
payments
of $14
No commission. The customer`s billing phone number must match the monobank customer`s financial number
payments
of $21
Commission 0.01% of the value of the goods when debiting a monthly payment
| Switch type | Reset function |
|---|---|
| Modification | Dry contact |
|
Backlight
The switch sensor have a backlight |
Blue - off, Red - on |
|
Number of posts
Number of mounting boxes for installation. Round mounting boxes are used. |
1 |
|
Number of sensors
Each sensor controls a separate load line. The switch sensor works in the on/off mode. The dimmer sensor works in the on/off + brightness control mode. |
1 |
| Length | 71 mm |
| Width | 71 мм |
| Depth | 24 mm |
| Remote control | No |
| Voltage | 220 V |
| Max. current | 5 А |
| Max. sensor load | 1000 W |
| Switching type | Relay |
|
Installation method
Internal - installation is carried out in mounting boxes |
Internal |
| Fastening wires | Screws |
|
Degree of protection
IP stands for "Ingress Protection", a European standard for protecting devices from external influences. IP20 is suitable for dry environments, such as rooms in a house or apartment, kitchens, hallways, and bedrooms. IP44 is suitable for bathrooms and damp environments. |
IP20 |
| Country of manufacture | China |
| Manufacturer | Wenzhou Livolo Electric Co., Ltd. |
| Lifetime | 100,000 clicks |
| Warranty period, month | 12 |
| Type of warranty | Manufacturer |
| Brand | LIVOLO |
| Producer Code (MPN) | VL-C701IH |
| Barcode | 4893193792014 |
