Modern digital solutions for heating and ventilation

The digital thermostat is designed for comfortable management of ventilation and thermal settings of convectors in various spaces, both residential and commercial. The thermostat allows you to select and customize the optimal heating mode, ensuring a constant indoor temperature.

The air conditioner controller offers control through three modes: cooling, heating, and ventilation. Additionally, you can choose one of four fan speeds: quiet, medium, high, or automatic. The controller is compatible with both central air conditioning systems and conventional ventilation convectors with electric valves.

Exceptional ease of use combines with an elegant design that fits into any interior style. Manage various functions with a simple touch on the touchscreen. And most importantly, you won't need additional devices. All necessary features, including fan speed adjustment, are available through a single air conditioner controller and a subordinate device.

Multiple speed modes and control selection option

Four fan speed modes: cooling, heating, and ventilation. The option to choose between manual and automatic fan speed control modes.

Wall-mounted control panel

Used for controlling ventilation in a central air conditioning system.

Air conditioner thermostat

Temperature control and regulation.

Touchscreen control interface

A gentle touch on the touchscreen is sufficient to perform various modes of operation.

Connection via RS485

The control controller (transmitter) is placed on the wall, while the receiver is located near the air conditioner.

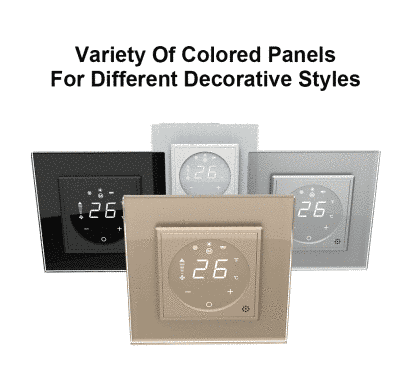

Suitable for any interior

Simple and stylish design with an elegantly crafted frame.

Moisture-resistant construction

Durable and crystal clear, it maintains its appearance over time.

Standby mode

In standby mode, the power indicator lights up in blue. The temperature display and adjustment buttons, along with the mode and speed selection buttons, remain hidden.

Tempered translucent glass

Even sharp objects do not leave scratches on it.

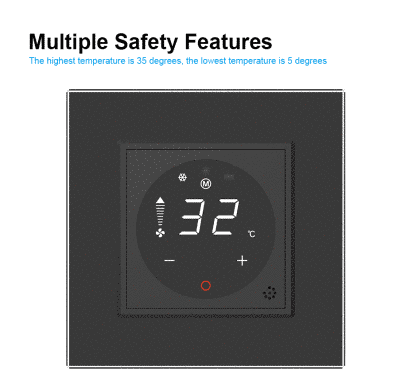

Temperature mode control

If the display remains inactive for 5 seconds, it automatically switches to displaying the room temperature.

Components

Luxurious frame made of crystal glass. Controller module. Metallic support frame.

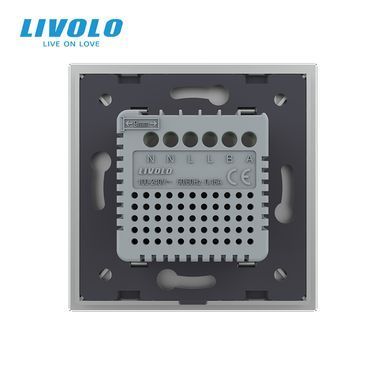

Controller Installation

It is installed into a round mounting box with a center-to-center distance for mounting screws of 60 mm. The size of the Livolo controller is 80*80 mm.

🔌 Connecting the Thermostat to an In-Floor Convector

🔋 Power Supply

• 230 V power is supplied to both the thermostat and the controller.
• The controller operates at 230 V and controls the in-floor water heating convector according to the thermostat settings.

⚠️When using fans or actuators that require 12/24/48 V, step-down transformers must be used.

Analog Control Mode (0–10 V)

🧠 Operating Principle

• The thermostat sends control signals to the controller via terminals A and B.
• The controller supplies 230 V to terminals Open, Close, Low, Med, and High to activate the necessary system components.

🔁 Connecting the Actuator (Water Supply Valve)

• The Open and Close terminals are used to control the actuator.
• The controller opens or closes the valve by applying voltage to these terminals.

🌬️ Connecting the Convector Fan

• The terminals are used to switch fan operation modes. The controller supplies 230 V to one of the terminals according to the set temperature.
  • Low (Low Speed)
  • Med (Medium Speed)
  • High (High Speed)
