Wireless Switch + Smart Touch Switch

Designing electrical networks in a home is a complex task that takes many factors into account. Often, after renovations are completed, it turns out that there are areas where switches are needed but missing.

In such situations, a wireless switch can be used. There’s no need to drill holes in the walls or perform complex installations. The number of switches can be increased simply by connecting the wireless switch to the existing smart switches. It can be attached anywhere using double-sided tape.

This is very simple, with no need to chase walls. It’s beautiful and practical.

The wireless switch transmits a radio signal to the smart touch switches.

The universal portable wireless touch switch by Livolo has a range of up to 30 meters.

Ways to use the wireless switch

1. Direct control of the smart switch. For this, a wireless switch and a smart switch are required.
2. Control of the smart switch through automation setup in the gateway. For this, a wireless switch, a gateway, and a smart switch are required.

How to connect the wireless switch

Follow these steps:

1. Touch the sensor of the smart switch 10 seconds until the second beep. Wait 60 seconds, during which time the switch is reset to factory settings.
2. Touch the sensor of the smart switch for 5 seconds and release when you hear a signal.
3. Touch the sensor on the wireless switch.

The wireless switch can be installed anywhere, but first, check if there is a good wireless signal in that location. Perform a connection test before attaching the switch. It is recommended not to attach it to metal surfaces to avoid signal interference.

Resetting the programming: Touch the switch sensor and hold your finger until the second beep (about 10 seconds). The programming will be reset.

How to set up automation

Make sure that the gateway, wireless switch, and smart switch are added to the LIVOLO HOME app. Open the automation section and follow these steps:

1. Turn On

Condition:
Device Status > Wireless Switch > Button 1 - Single Press
Device > Smart Touch Switch (Bedroom) > Off

Action:
Device > Smart Touch Switch (Bedroom) > Turn On
Device > Switch (Bathroom) > Turn On

2. Turn Off

Condition:
Device Status > Wireless Switch > Button 1 - Single Press
Device > Smart Touch Switch (Bedroom) > On

Action:
Device > Smart Touch Switch (Bedroom) > Turn Off
Device > Switch (Bathroom) > Turn Off

Thus, even if family members do not have the mobile app to control the switch, they can use the wireless switch to manage other smart devices through automation scenarios.

The set includes

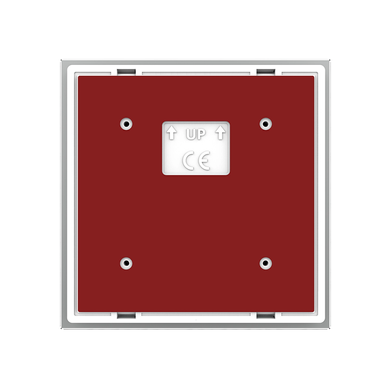

• Wireless Smart Touch Switch 1 Sensor Livolo (VL-XR007)
• Smart Touch EU Switch 1 Sensor Livolo (VL-M7FC1Z2-2)

Size

Standard size, same as all LIVOLO hardware: 80x80 mm.
